MAGNUS HD TREND

MAGNUS HD TREND is the latest magnification system from TAGARNO. It combines superb HD image quality with the magnification features of a microscope.

Magnification up to 320x

Providing superb HD image quality, magnification up to 320 times and live imaging at 60 fps, MAGNUS HD TREND enables you to see extremely small details very clearly.

Features:

Magnification up to 320x
Superb Image quality
Quick Image Capture on PC or SD card
Split Screen Function
Laser diode
Easy Height Adjustment down to 1/100 mm
ESD security
Multi viewer option
User friendly applications
Better working postion


Application:

MAGNUS HD TREND has been developed to optimize the processes of visual inspection in industry today. Whether you are seeking to diminish the number of false rejects from an AOI system or to create an overall improvement of your quality processes, MAGNUS HD TREND is a strong partner.

Combined with a range of accessories, MAGNUS HD TREND can be perfectly adapted for the following processes:

Manual optical inspection
Assembly of products
Repair and rework
Quality control
Non-contact 2D measurements
Documentation

Magnus HD Trend - Decision Tree

For you to make the best possible configuration and ease of order. Please go from step 1 to 8 and cross off the relevant product leaves.

Dimensions: 46x32.5x53cm

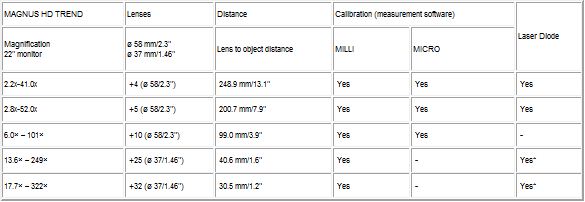

Magnification: 2.2 - 322x on 22''
Weight: 6.8kg
Working Height: min. 5cm, max. 32cm
Working Depth: 38.5cm
Monitor format detect: Yes
Auto Focus: Yes
Camera Resolution: HD720p-1280x720@50/60Hz
Power Consumption: 20W
Connections: DVI output and input/USB 2.0/SUB-D 9-Pol to control box
Zoom: 10x optical, 2x digital
Iris: F1.8 till F26

Product Presentation MAGNUS HD TREND.pdf
